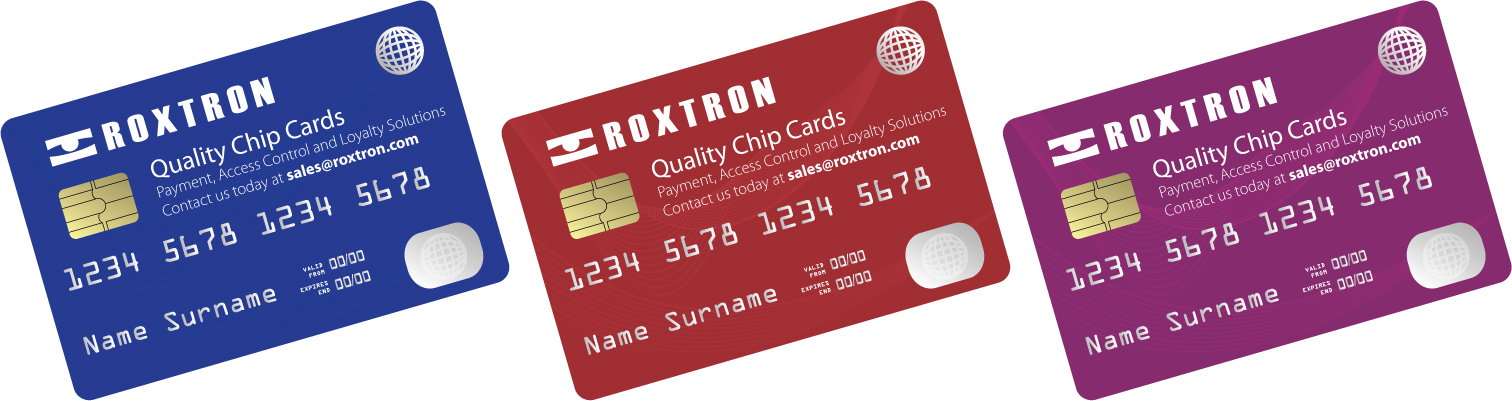

Contact chip card. Colors and personalization are specified for your order.
Contact chip card with AT24C128SC
Contact chip card configured with AT24C128SC. Contact memory IC for compatible card readers and personalization systems.
Printing, encoding, quantity and delivery are confirmed in the approved order specification.
The AT24C128SC configuration.
A CR80 card platform for contact memory ICs from the Infineon and Atmel ranges and other available IC options. Select the electrical interface, memory organization and personalization requirements to match your card reader.
Contact memory IC for compatible card readers and personalization systems.
Physical specifications
| Specification | Details |
|---|---|
| Compliance | ISO 7810 ID-1 / CR80 |
| Dimensions | 85.60 × 53.98 mm (or 3.370 × 2.125 in) |
| Thickness | 0.80 (±0.04) mm |
| Weight | 5.8g+/-0.5g |
| Standard Color | White |
| Material Options | PVC, PC, PET, Paper |
| Surface Options | Glossy, Matte |
| Printing Method | Offset Printing, Silkscreen Printing, Silver, Gold, Bronze Glittering Effect, UV Printing |
| Number Printing Options | Inkjet, Embossing, Thermal Transfer, Laser Engraving |
| Magnetic Stripe Options | LoCo 300 OE, 350 OE, HiCo 650 OE, 2750 OE, 4000 OE |
| Barcode Options | Code 39, 128, QR and other popular formats |
| Other Options | Signature Panel, Hole Punching, TRW Thermo-Rewrite Foil, Lanyard Slot Punching, Metal Keyring, Ballpoint Pen Writable Panel, Stamp Foil |
Manufacturing specifications are confirmed for the selected size, materials and finishing options in your approved order. IC temperature or security ratings do not establish finished product ratings.
AT24C128SC IC specifications
| Specification | Details |
|---|---|
| Semiconductor IC | AT24C128SC |
| Interface / protocol | Contact interface; exact protocol depends on IC |
| Catalog chip designation | AT24C128SC |
| Operating interface | Contact |
| Catalog technology group | Contact interface; exact protocol depends on IC |
| Part number selection | Confirm the manufacturer variant, memory layout and reader support with your quotation |
Memory and protocol values describe the IC. Actual read performance depends on the finished antenna, enclosure, reader and operating environment.
Match the complete part number, reader command set and data format before qualification. Frequency alone does not establish interoperability.
Integration and qualification
Confirm the reader electrical interface, operating voltage, communication protocol and memory organization. Include the personalization software and any required protected memory or authentication workflow.
Agree the card construction, thickness, surface finish and printing process. Confirm that any slot, hole or magnetic stripe positioning is compatible with the antenna and personalization equipment.
Approve an encoded sample in the finished application before volume production. Define acceptance criteria for identification, memory access, printed data and repeated operation.
Define your production requirement.
Reference Contact chip card with AT24C128SC in your enquiry, together with the following details.
| Specification | Details |
|---|---|
| System | Reader manufacturer and model, application software and existing credential specification |
| Configuration | IC part number and memory variant, product size, color and required finish |
| Personalization | Print artwork, numbering format, encoding layout and verification requirements |
| Supply | Initial quantity, repeat volume, sample quantity, destination and required delivery date |
| Acceptance | Sample approval criteria and any required material, compliance or traceability documents |
Minimum order quantity, current availability, lead time and pricing are confirmed for the complete configuration. Production availability is confirmed with your quotation.
Build your quotation briefTechnical references
Semiconductor documentation defines IC capabilities. Our approved product specification defines the finished Roxtron product.
