MIFARE DESFire EV1 8K RFID products and specifications

A 8 kB DESFire EV1 IC for applications requiring authenticated transactions and a configurable file structure.

Specify MIFARE DESFire EV1 8K in a finished Roxtron product

Roxtron manufactures the product formats listed below with this IC option. Select the physical format to review its dimensions, materials, chip specifications and production requirements.

IC specification summary

Specification	Details
Semiconductor IC	MIFARE DESFire EV1 8K
Interface / protocol	ISO/IEC 14443 Type A, parts 1–4 · NFC Type 4
Nominal memory	8 kB
RF data rates	106, 212, 424 and 848 kbit/s
Identifier	7 byte UID; optional random identifier
Cryptographic options	DES, 2K3DES, 3K3DES and AES 128
Files per application	Up to 32
Application capacity	Up to 28 applications

Define application identifiers, file types, access rights and key provisioning with the system integrator. Available application space depends on the file system and configuration.

Compatibility modes do not remove the need to validate reader firmware, authentication and transaction behavior.

Semiconductor technical references

How to interpret product and semiconductor specifications

MIFARE DESFire EV1 8K product configurations

Compare construction and dimensions within each format. IC availability depends on the selected antenna, size and approved order specification.

MIFARE DESFire EV1 8K smart cards

MIFARE DESFire EV1 8K RFID clamshell card

85.60 × 53.98 mm (or 3.370 × 2.125 in)

MIFARE DESFire EV1 8K RFID ISO card

85.60 × 53.98 mm (or 3.370 × 2.125 in)

MIFARE DESFire EV1 8K rfid & nfc labels

MIFARE DESFire EV1 8K HF 13.56 MHz labels

13.56 MHz · custom dimensions

MIFARE DESFire EV1 8K NFC tags

Paper, PVC or PET · custom dimensions

MIFARE DESFire EV1 8K key fobs

MIFARE DESFire EV1 8K Angeline™ tag

PVC, epoxy

MIFARE DESFire EV1 8K RXK01 key fob

53 x 37.5 x 9.8 mm

MIFARE DESFire EV1 8K RXK02 key fob

35 x 27.5 x 5.5 mm

MIFARE DESFire EV1 8K RXK03 key fob

38x30x6 mm

MIFARE DESFire EV1 8K RXK04 key fob

40x33x4 mm

MIFARE DESFire EV1 8K wristbands

MIFARE DESFire EV1 8K Rozo™ wristband

290 x 37 mm; Adjustable size by Velcro band.

MIFARE DESFire EV1 8K RW01 wristband

270 x 37 mm; Custom sizes are available from Roxtron upon request.

MIFARE DESFire EV1 8K RW05 wristband

Silicone

MIFARE DESFire EV1 8K RW06 wristband

Multiple sizes available

MIFARE DESFire EV1 8K RW17 wristband

270 x 37 mm; Custom sizes are available from Roxtron upon request.

MIFARE DESFire EV1 8K RW27 wristband

246 x 36 mm

MIFARE DESFire EV1 8K RW35 slap bracelet

280 x 28 mm (Slap Band: Slap band; verify wearer fit)

MIFARE DESFire EV1 8K disc & embedded tags

MIFARE DESFire EV1 8K RXD00 transparent disc tag

Diameter 13mm, 15mm, 18mm, 20mm, 22mm, 25mm, 30mm, 35mm, 50mm

MIFARE DESFire EV1 8K RXR00 white disc tag

Diameter 13mm, 15mm, 20mm, 25mm, 30mm, 35mm

MIFARE DESFire EV1 8K mifare® credentials

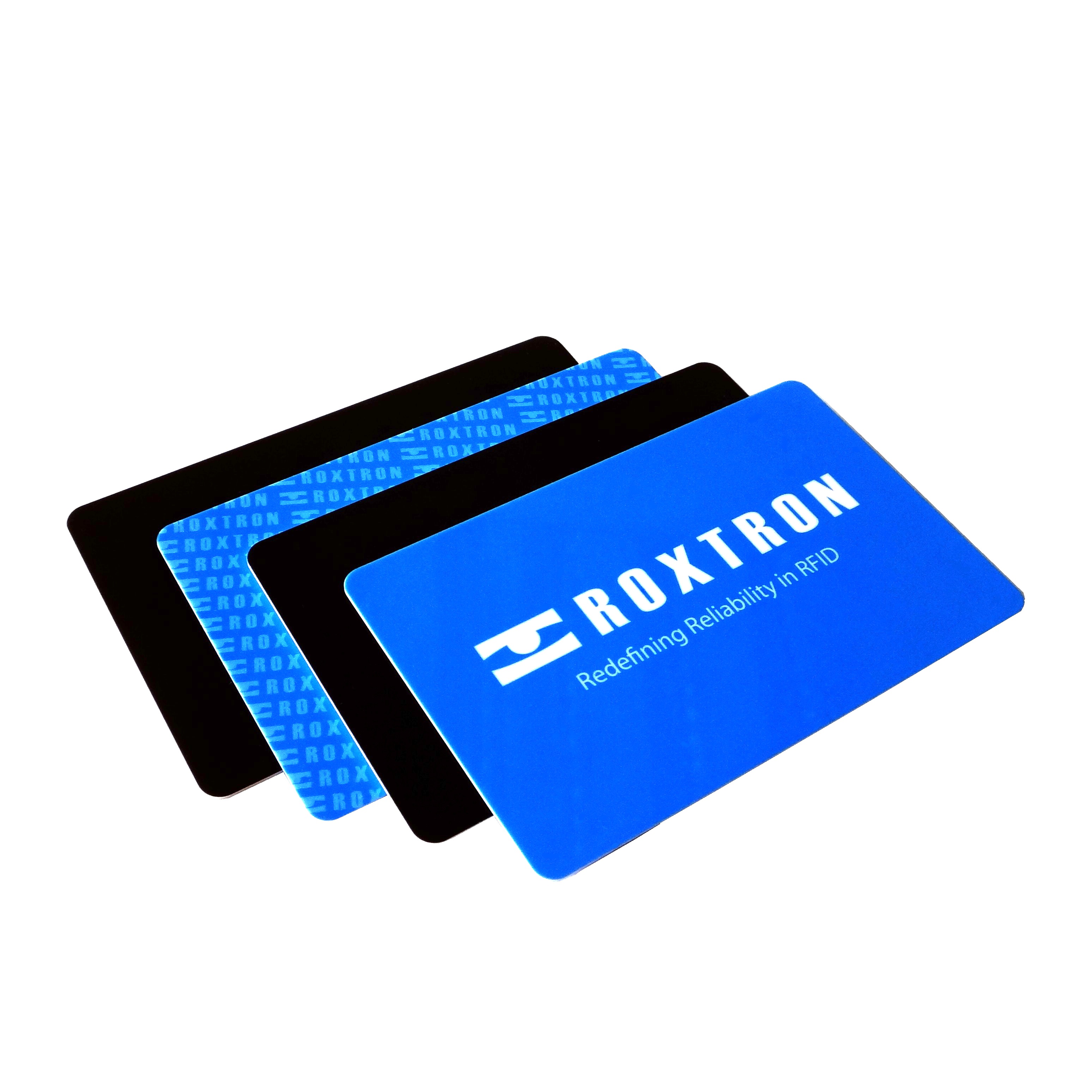

MIFARE DESFire EV1 8K MIFARE DESFire® EV1 card

85.60 × 53.98 mm (or 3.370 × 2.125 in)

Reader compatibility and manufacturing qualification

Specify the application identifiers, file structure, authentication algorithm, key versions and access rights. Validate a personalized sample with the installed reader firmware and issuing software. A successful UID read is not proof that an application transaction will work.

Select a finished product above for format specific guidance on dimensions, attachment, antenna placement and operating conditions.

State your required product model, IC order code, printed identifiers, encoding format, initial volume and delivery destination. Roxtron confirms the complete production specification and quotation before manufacture.
